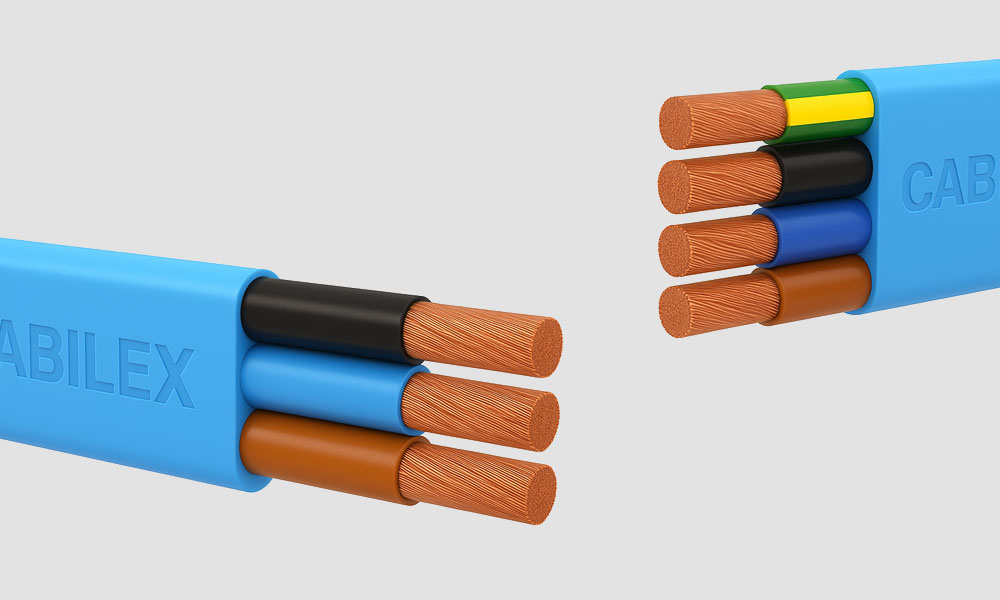

PVC 3 & 4 Core Flat Cables

Construction:

Conductor :- Finely stranded bare flexible copper conductor.

Insulation :- PVC

Sheath :- PVC

3core Colours :- Red, Yellow, Blue OR Brown, Blue, Black

4core Colours :- Red, Yellow, Blue, Green OR Brown, Blue, Black, Yellow with Green line OR Green with Yellow line

For continuous use in deep well to supply power to submersible motors for the depth upto 500 mtrs.

Excellent resistant to moisture, abrasion, greace, oil.
Excellent mechanical & electrical properties.
Generally Conforming to : CENELEC HD 21, IEC 60227, BS 6500, DIN VDE 0281, IS 694.
Temperature range -15°C to +70°C

Conductor		PVC Insulation		PVC Sheath			Conductor Resistance at 20°C (Max) Ω/km	Current Rating at 40°C Amps.
Nominal Size in	Nos. & Dia of Wire	Nominal Thickness	Nominal Core Dia	Nominal Thickness	Approx. Overall Dimensions
Sq. mm.	Nos./mm	mm	mm	mm	Height mm	Width mm
1.50	22/0.30	0.80	3.25	1.15	6.20	12.80	12.10	14
2.50	36/0.30	0.90	3.80	1.15	6.40	14.60	7.41	18
4.00	56/0.30	1.00	4.50	1.15	7.40	16.60	4.95	26
6.00	84/0.30	1.00	5.25	1.15	7.90	18.60	3.30	31
10.00	140/0.30	1.00	6.50	1.40	9.90	23.70	1.91	42
16.00	224/0.30	1.00	8.00	1.40	11.80	28.00	1.21	57
25.00	350/0.30	1.20	10.10	2.00	14.70	35.50	0.780	72
35.00	490/0.30	1.20	11.30	2.00	16.80	39.50	0.554	90
50.00	703/0.30	1.40	13.50	2.20	18.00	45.50	0.386	115
70.00	988/0.30	1.40	15.30	2.20	20.00	51.00	0.272	143
95.00	1349/0.30	1.60	18.00	2.40	23.50	60.00	0.206	165
120.00	608/0.50	1.90	19.80	2.80	25.00	65.00	0.161	188
150.00	760/0.50	2.20	22.70	4.00	30.70	76.10	0.129	216

Conductor		PVC Insulation		PVC Sheath			Conductor Resistance at 20°C (Max) Ω/km	Current Rating at 40°C Amps.
Nominal Size in	Nos. & Dia of Wire	Nominal Thickness	Nominal Core Dia	Nominal Thickness	Approx. Overall Dimensions
Sq. mm.	Nos./mm	mm	mm	mm	Height mm	Width mm
1.50	22/0.30	0.80	3.25	1.30	6.20	15.80	12.10	14
2.50	36/0.30	0.90	3.80	1.30	6.40	18.00	7.41	18
4.00	56/0.30	1.00	4.50	1.45	7.40	21.00	4.95	26
6.00	84/0.30	1.00	5.25	1.50	7.90	24.50	3.30	31
10.00	140/0.30	1.00	6.50	1.80	9.90	29.70	1.91	42
16.00	224/0.30	1.00	8.00	1.95	11.80	36.00	1.21	57
25.00	350/0.30	1.20	10.10	2.00	14.70	45.10	0.780	72
35.00	490/0.30	1.20	11.30	2.00	16.80	50.10	0.554	90
50.00	703/0.30	1.40	13.50	2.20	18.20	58.20	0.386	115
70.00	988/0.30	1.40	15.30	2.20	20.00	66.50	0.272	143
95.00	1349/0.30	1.60	18.00	2.40	23.50	77.30	0.206	165
120.00	608/0.50	1.80	19.80	3.50	27.80	87.00	0.161	188

Note says:

The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360

In view of continuous improvements in our design and process, specifications given here in are subject change without notice.
